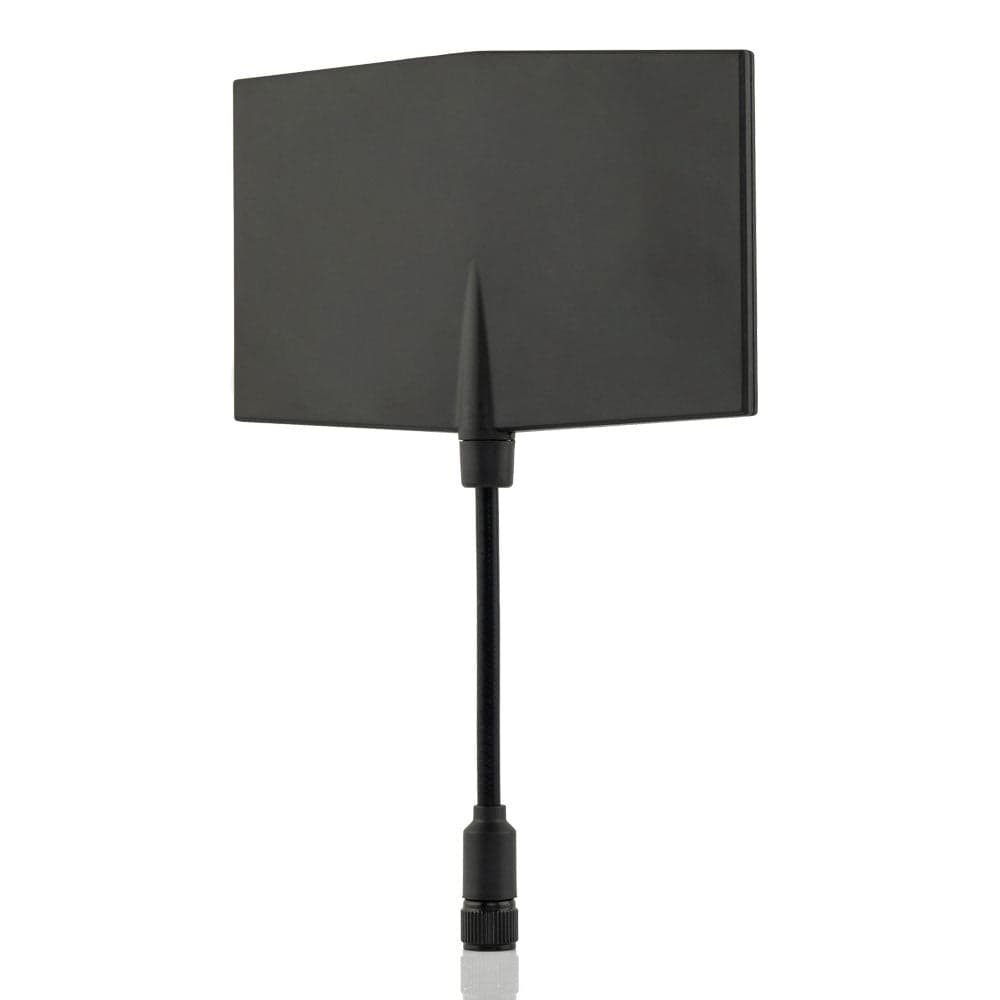

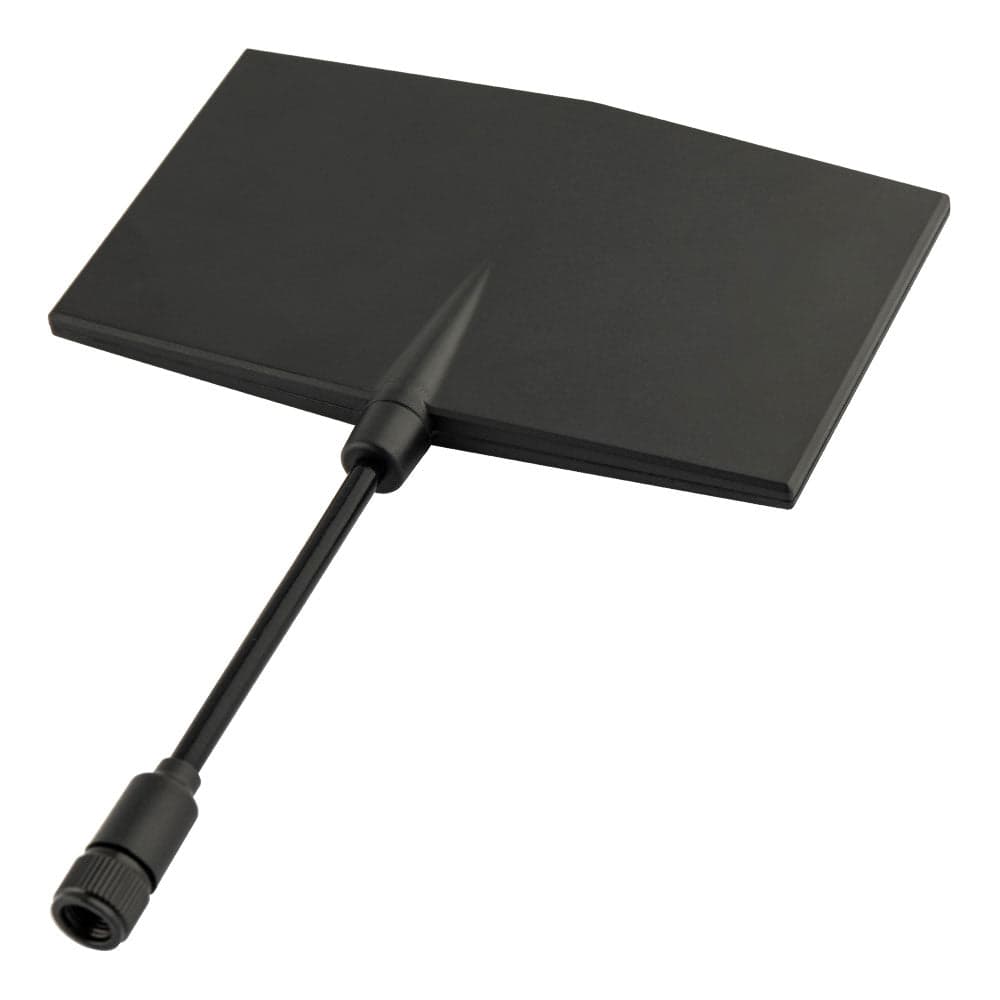

RadioMaster Bandit 915/868MHz Moxon Antenna

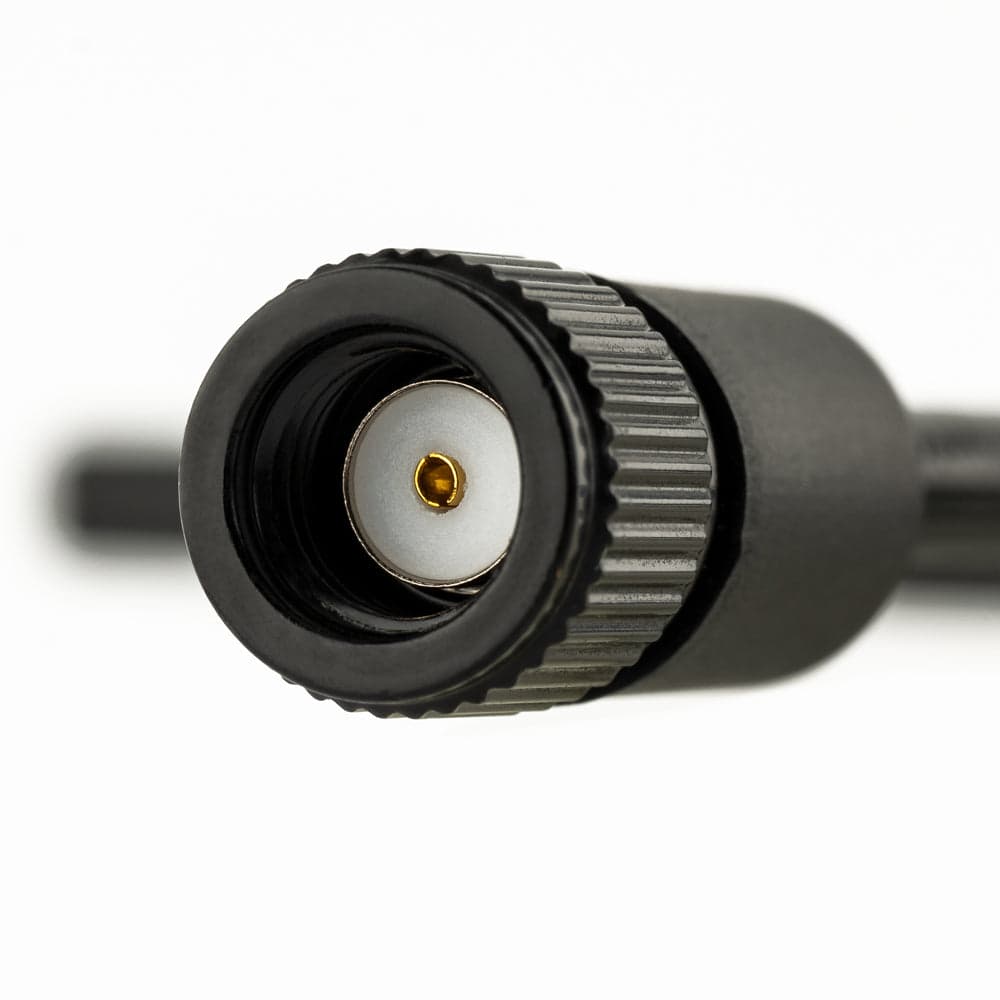

The Bandit Moxon Antenna, with its 80 mm length, provides superior interference separation. Built on a professionally engineered RF PCB substrate and optimized for the Bandit series, the Bandit Moxon antenna delivers a focused, directional pattern ideal for situations where enhanced link robustness and signal clarity are required. The design incorporates a heavy-duty RG402 coaxial line to improve signal transmission and reduce external interference. A customized 360° swivel RP-SMA connector allows precise positioning for optimal performance. Note: A Moxon antenna has a narrower field of operation. For best results, orient the antenna toward the general area where your system will be operating. Features High gain, high efficiency directional transmitter antenna Compact and rugged housing Using professional RF PCB substrate, optimised for traditional MOXON design Uses heavy-duty RG402 coax cable and customised 360° swivel RP-SMA socket Featuring an 80mm coax cable, reduces interference to the transmitter Specifications Item: Bandit 915/868MHz Moxon Antenna Bandwidth: 860-930MHz Polarisation: Linear Radiation Direction: Directional Beam Width @-3dB: 145° Gain: 4.6dBi VSWR: >1.5 Connector: RP-SMA Input Impedance: 50Ω Dimension: 107*155mm Weight: 47.44g Dimensions Bandit Series Bandit ExpressLRS RF Module Bandit Micro ExpressLRS RF Module Bandit Nano ExpressLRS RF Module Bandit BR1 Receiver Bandit BR3 Receiver Bandit MOXON Antenna Bandit T Antenna UFL 915Mhz T & Y Antenna for BR Series Receivers Package Includes 1 * Bandit Moxon Antenna
