RadioMaster Ranger 2.4GHz ELRS Module Limited Edition

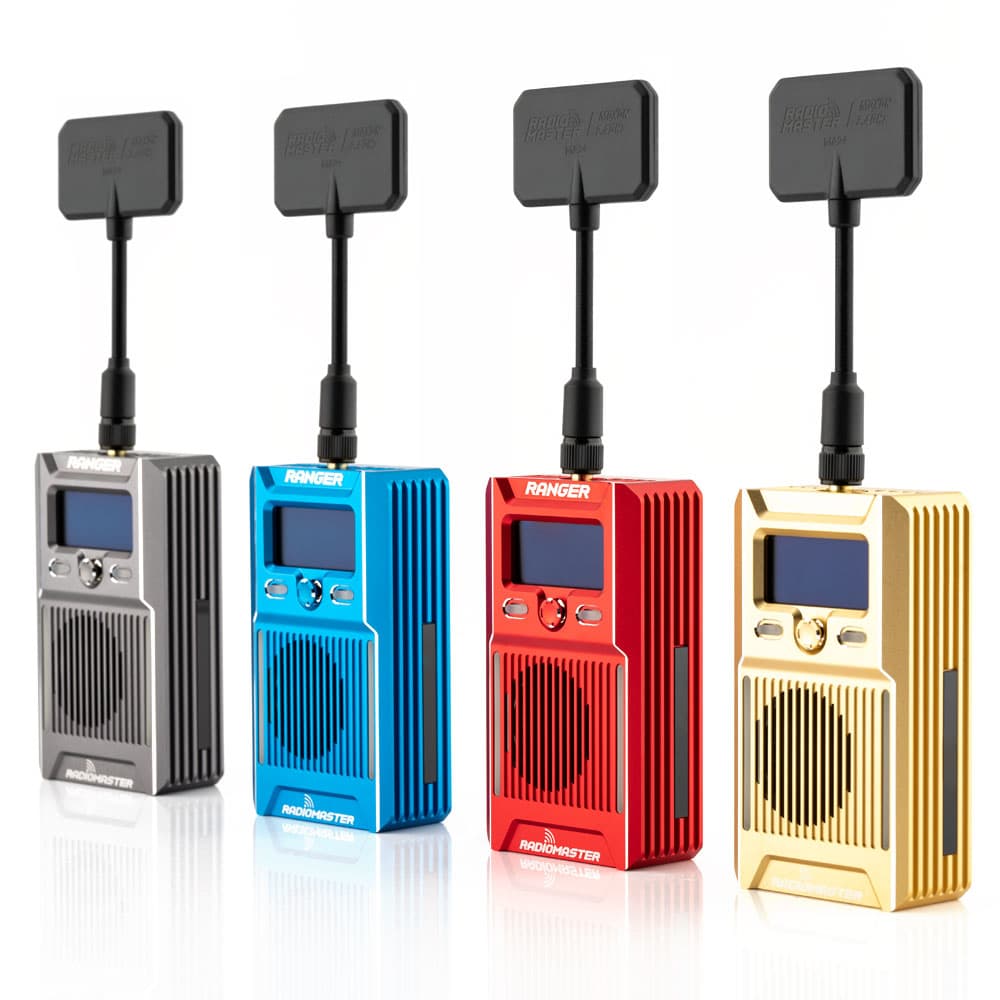

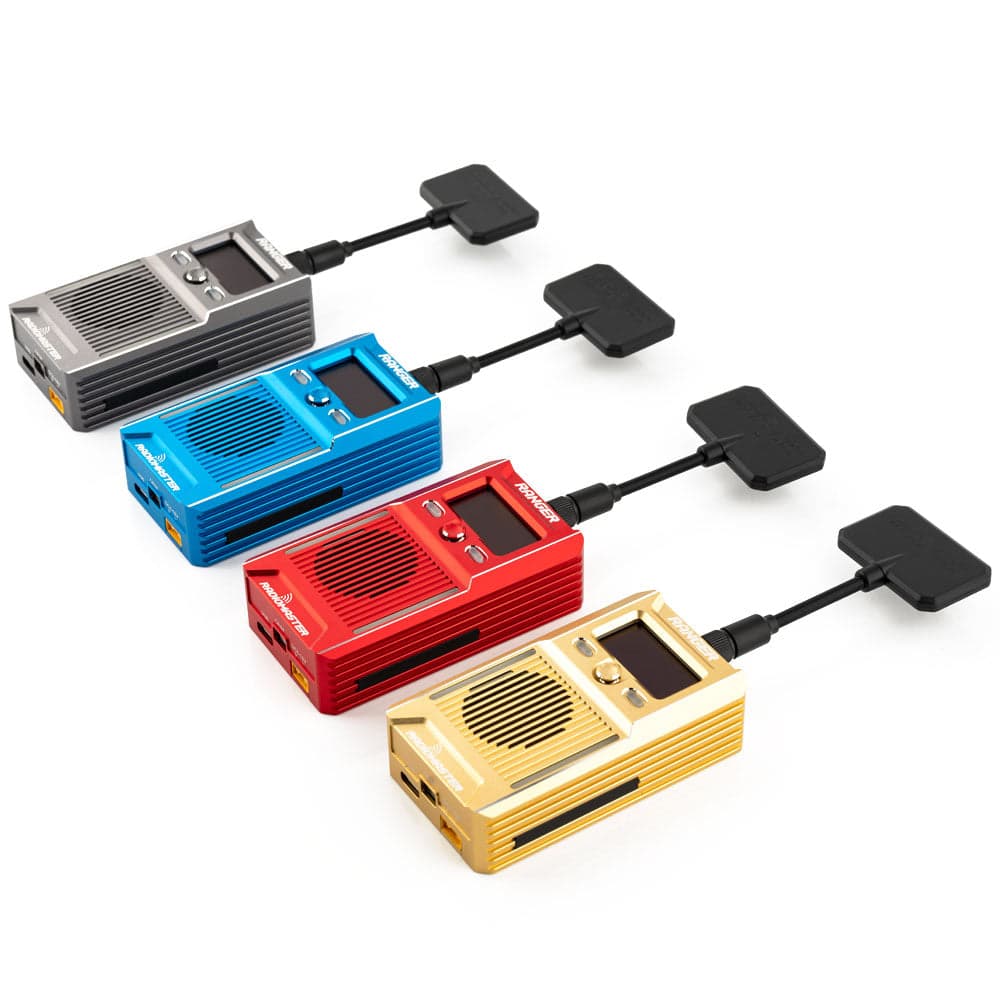

Be the first to experience our refined and exclusive Ranger 2.4GHz ELRS Module Limited Edition! It offers a range of distinctive colors to stand out, including blue, red, gold, and grey. Act fast, while supplies last! Features Optional 4 colors - Blue/Red/Gold/Grey Built-in ExpressLRS Backpack OLED Display Rugged CNC Case Built-in Accelerometer Packet rates up to F-1000Hz Wifi and Bluetooth support High-efficiency cooling system 5 Direction Nav key and customizable shortcut buttons Micro and Nano adapters included Moxon and T-antenna included CRSF cable for compatible Futaba radios included Specifications Item: Ranger 2.4GHz ELRS Module Limited Edition Regulatory Domain: ISM2400 MCU: ESP32(main), ESP8285(aux, as ESP backpack) RF chip: SX1281IMLTRT Frequency Range: 2400 MHz - 2480 MHz Maximum packet rate: 500Hz/F-1000Hz (F-1000Hz mode requires EgdeTX 2.7.1 or later) Minimum receiver refresh rate: 25Hz Module bay adapters: JR standard 5pin socket & Nano standard 8pin socket Futaba CRSF socket cable: Included OLED screen: 64x128px Wifi Support: Yes Bluetooth support: Yes 3-Axis Accelerometer: Yes (STK8BA58 MEMS Accelerometer) Built-in RGB light strip XT30 Power supply voltage: DC 6V - 16.8V Weight: 138g (with Moxon antenna) / 135g (with T antenna) / 126g (without antenna) Dimension: 95*51*25mm (without antenna) Associated Products Ranger 2.4GHz ELRS Module Ranger Micro 2.4GHZ ELRS Module Ranger Nano 2.4GHZ ELRS Module 2.4GHz T Antenna 2.4GHz Moxon Antenna Package Includes 1 * RANGER Module 1 * Futaba CRSF socket cable 1 * Micro Adapter 1 * Nano Adapter 1 * T Antenna 1 * Moxon Antenna 1 * Hexagon socket screwdriver 3 * M2*5 Screws 1 * Assembly Manual
